GRAVOTECH

Gravotech an international mid-sized company specializing in marking and engraving technologies , is merging its three historical trademarks Gravotech , Gravograph and Technifor to create Gravotech , and is evolving its brand platform.

Our brand recognised worldwide for its experties in mechanical and laser engarving applications, is embodying a new vision of its bussiness. The expression of things and deploys this concept through a new identity and a new website launched worldwide in january 2021.

Thumb

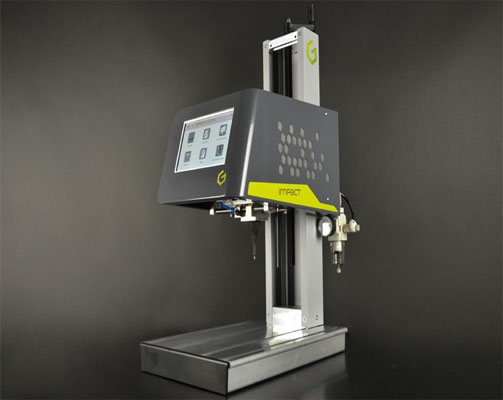

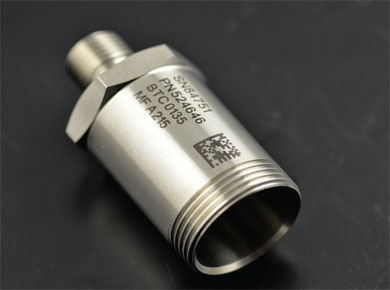

DOT PEEN MARKING STATION

TOUCH & MARK

Start marking the moment your machine is out of the box! The IMPACT is a totally standalone machine with onboard traceability software. Its intuitive touch interface makes it easy to configure and master (Keyboard connection available). It facilitates the development of a unique identification system for your workpieces and reduces the risk of error.

MULTIPURPOSE

Flexible, it adapts itself to your activity: all kinds of parts and materials, every process (unitary, series marking, flat parts, cylinders, connection to a barcode scanner, to your database, etc.) Motorized Z axis (optional) enables the performance of multi-level marking operations with no intervention on the part of the operator. Mark workpieces of complex shapes... Nothing could be simpler!

LOW OPERATING COST

You are guaranteed the marking of each part under the conditions of yield, quality, cost, safety and time frames required by your production planning. Simple to install, simple to use, simple to maintain, the Impact system contributes to the cost-effectiveness of the workshop. This third generation benchtop machine has built up an in-depth 25 years experience on your applications in a lot of business segments. This makes the IMPACT the most robust Dot peen machine on the market.

TECHNICAL CHARACTERISTICS

Marking field 100 x 120 mm
Technology Pneumatic
Z axis Motorised or Manual (basic version)
Z travel 300 mm
Character height 0.5 - 100 mm

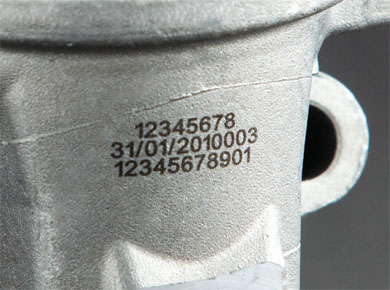

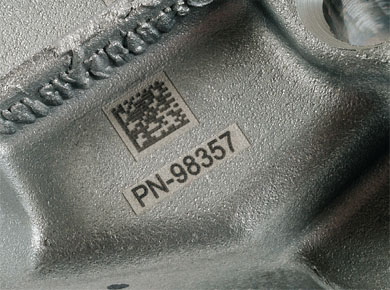

Marking applications Texts, logos, 2D codes (DataMatrix, QR codes etc.)
Communication Ethernet TCP/IP, RS232, USB, FTP, dedicated Inputs/Outputs
Power supply Universal: 100-240 V AC
Material hardness ≤ 62 HRC (marks most metals)
Weight & dimensions (l x w x h) 26 kg - 430.9 x 270 x 704 mm
Software T08 - onboard software
Software functionalities Serialisation - Automatic timestamping - Counters - Duplication control - Marking result preview - Link to a database (CSV, Excel, Access) - Marking history

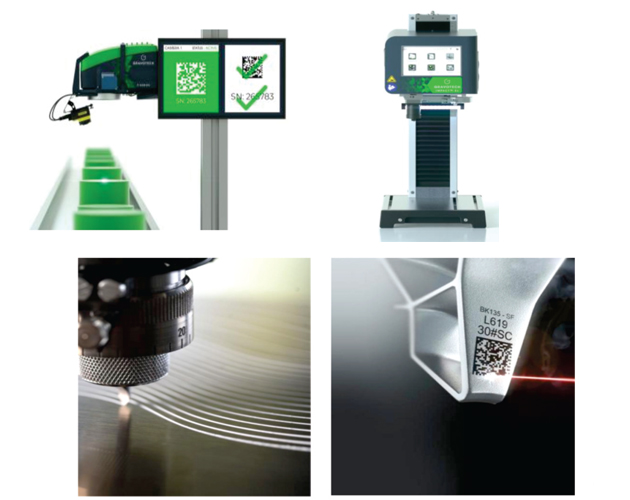

FIBER LASER

TECHNICAL DATA

FIBER SERIES FIBER ENERGY
Model F20 / F30 / F50 F20E / F30E
Laser technology Fiber Fiber
Power 20W /30W /50W 20W /30W
Peak power 10 kW 10 kW
Frequency 2-200 Khz 30-60Khz
Scan speed Up to 10000 mm/s (393.7 in/s) Up to 3000 mm/s (118.11 in/s)
Marking area - Available lenses F100: 65 x 65 mm (2.6 x 2.6 in) F160: 110 x 110 mm (4.3 x 4.3 in)
F254: 175 x 175 mm (6.9 x 6.9 in)
F330: 205 x 205 mm (8 x 8 in)		 F160: 110 x 110 mm (4.3 x 4.3 in)
F254: 175 x 175 mm (6.9 x 6.9 in)
Communication Interfaces(standard) Ethernet TCP/IP; Terminal block 8I / 8O; Laser Safety Dedicated I/O; RS232; USB
Fieldbus PROFINET or ETHERNET IP
Display Integrated screen with control panel for: real-time supervision, easy diagnosis, software updates, memory back-up…
Marking Specifi cations +60 Gravotech fonts, Possible to convert User & TTF fonts, All formats of barcode and 2D codes, Logos
Operating temperature 10 to 40°C (50 to 104 F)
Rated voltage 100 - 240 V AC
Marking head weight 8.3 kg (18.3 lbs) 7.5 kg (16.5 lbs)
Control unit F20-F30: 16.6 kg (36.6 lbs)
F50: 20.6 kg (45.4 lbs)		 17 kg (37.5 lbs)
Marking head cable length 3 m – 9.8 Ft (5 m – 16.4 Ft in option) 3 m – 9.8 Ft
Marking head installation direction All positions
Laser Safety Classifi cation Class 4 Laser system, possibility to switch in Class 1 for integration on a station or equipped with Mini Inline module.

APPLICATION

Thumb

Annealing

Thumb

Laser etching

Thumb

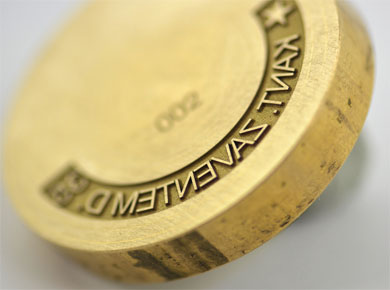

Deep engraving

Thumb

Surface cleaning

Thumb

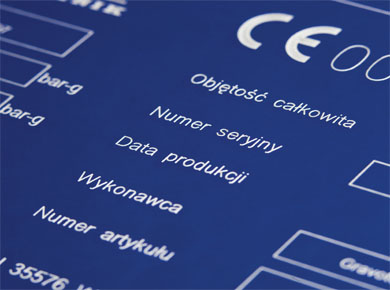

Coating removal

Thumb

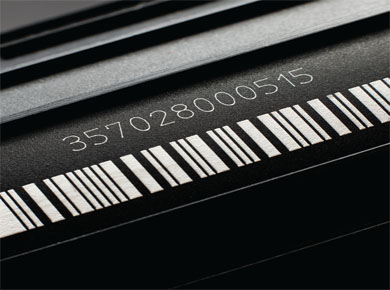

Contrasted marking on plastic

Thumb

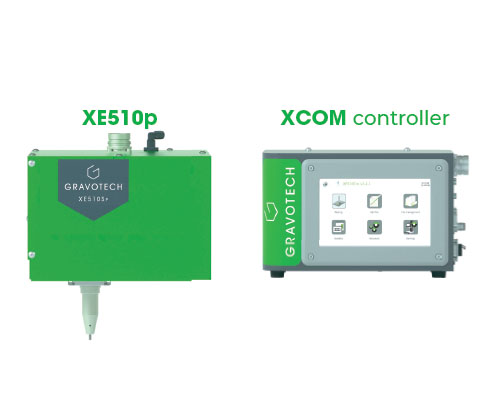

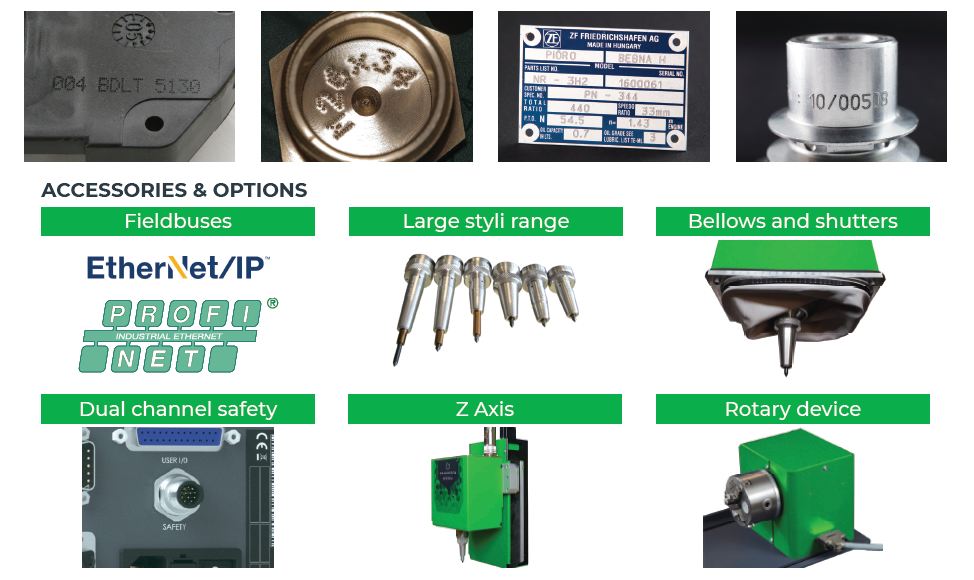

XE510p

TECHNICAL DATASHEET

The XE510p is the ideal pneumatic marking machine for permanent identifi cation of your parts. It has been designed to be easily integrated into production lines and to focus on your core needs. Perfectly suited for intensive use on production lines, this integrable dot peen marking head benefi ts from over 40 years of proven design that combines compactness, robustness and performance. The XE510p offers an unmatched cost of ownership on the market thanks to its low acquisition cost, low maintenance and exceptional uptime.
